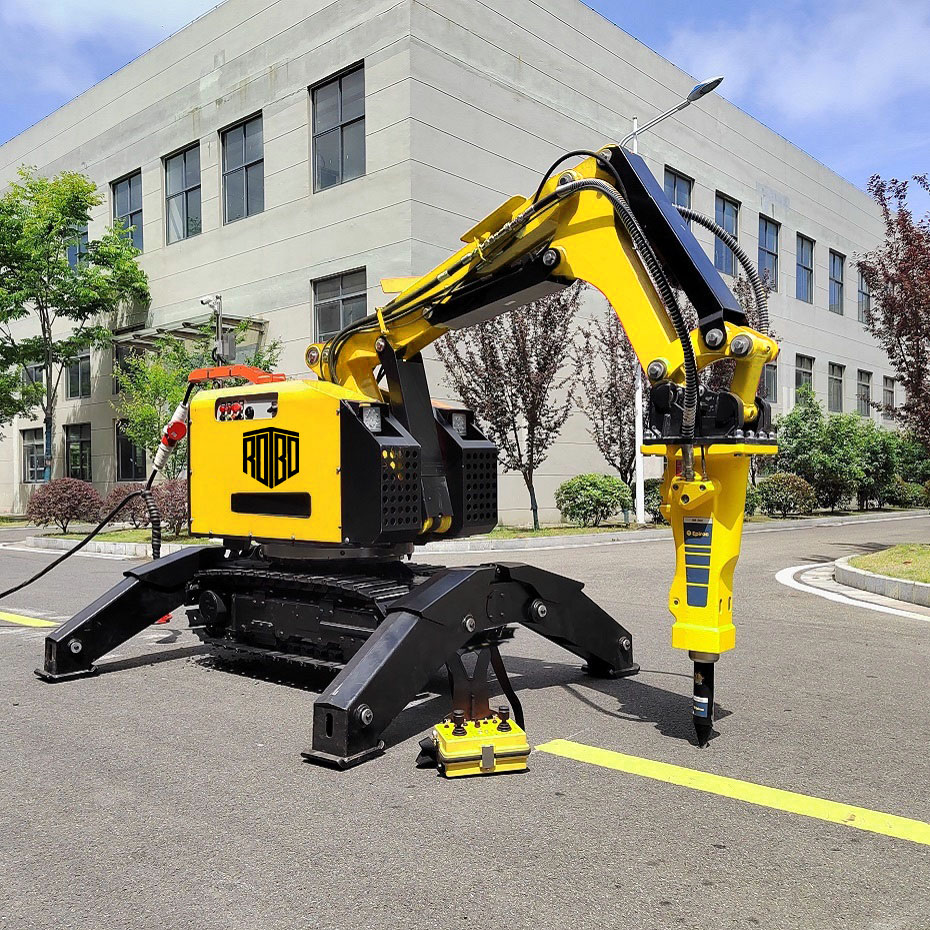

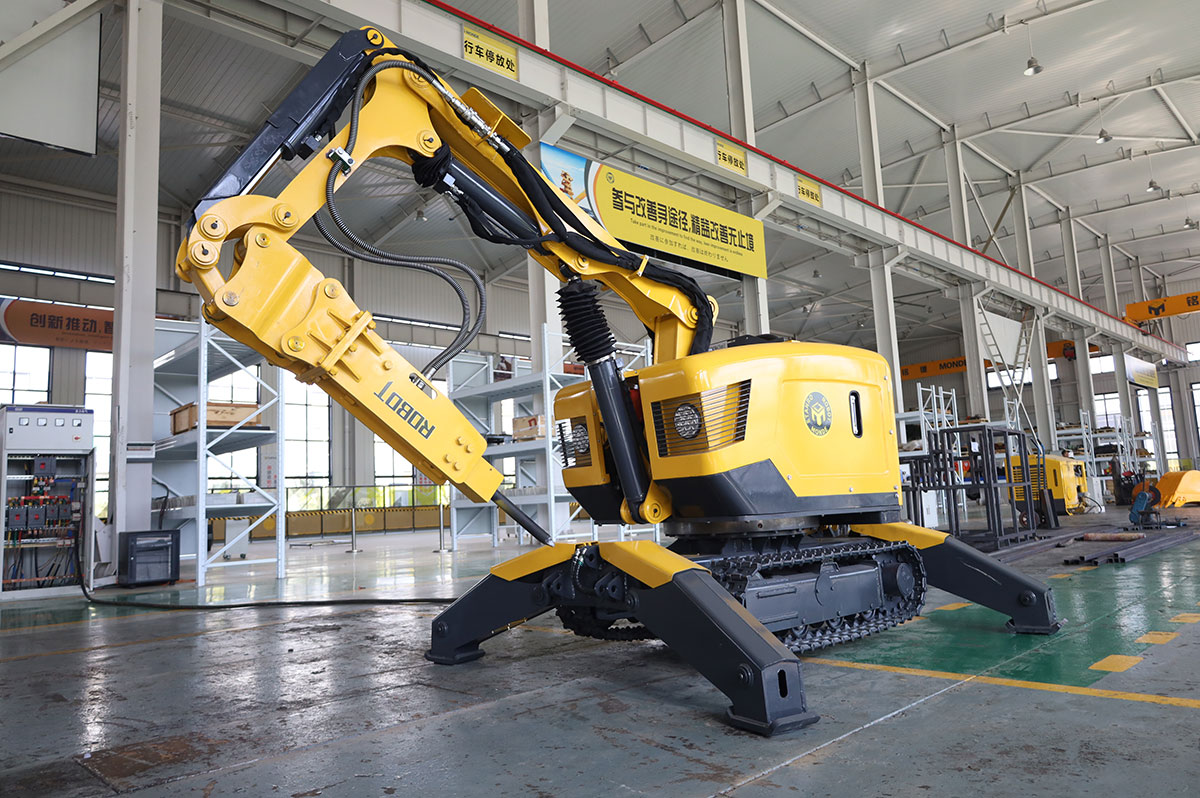

Robot 300D
Demolition robot is a kind of motor driven equipment independently developed in China. It is a new high-tech equipment with fine operation capability in high-risk environments.
WANT OUR CATALOG? ORDER
Main products of the company: demolition robot, remote demolition robot, demolition robot, remote demolition robot, fixed hydraulic crusher, fixed hydraulic crusher, soil sampling drill, direct push soil sampling drill, diesel powered fire fighting robot, smoke and fire fighting robot, smoke and fire fighting robot.
| Technical parameters | Performance index | |
| Overall performance | Vehicle equipment quality：4960kg | |
| Traveling speed:2.2km/h | ||
| Slewing speed: 0-8rpm | ||
| Climbing gradient: 30 ° | ||
| Track width: 300mm | ||
| Tools available: hydraulic hammer, hydraulic shear, bucket, grab, etc | ||
| Geometric dimensions | Equipment dimensions |
Length: 3891mm |
| Minimum height: 1882mm | ||
| Minimum width: 1200mm | ||
| Working space | Maximum working height: 6604mm | |
| Maximum working radius: 6194mm | ||
| Maximum working depth: 3451mm | ||
| Powertrain | Diesel engine driven | Power/speed: 37kW@1480rpm |
| Maximum torque: 239Nm | ||
| Hydraulic system | Main pump: load sensitive axial piston variable displacement pump | |
| Output flow:0~110Lpm | ||
| Main valve: load feedback pressure compensation electrohydraulic proportional multiple way valve | ||
| System rated pressure: 21MPa | ||
| Hydraulic oil tank volume: 159L | ||
|
Control system |
Control device: portable remote control | |
| Control mode: wireless/wired (20m) | ||
| Communication mode: digital wired two-way communication based on CAN bus | ||
Features
Performance
- Slewing speed
- 0-8rpm
- Transport speed, max.
- 2.2km/h
- Climbing inclination, max.
- 30°
Hydraulic system
- Hydraulic system capacity
- 159L
- Pump type
- Load sensitive axial piston variable displacement pump
- System pressure
- 21MPa
Power system
- Power*
- 37kW@1480rpm
Control system
- Control type
- Portable remote control
- Transfer
- wireless
Weight
- Machine weight**
- 4960kg
- Width min.
- 1200mm
- Height min.
- 1882mm
