ROBOT 100D
Great power in minimal spaces. A demolition robot that eliminates all need for manual demolition work.
WANT OUR CATALOG? ORDER
The ROBOT100D is the perfect solution for safe and efficient demolition in confined spaces. Its combination of power, small size, and light weight allow for work in places where mechanized demolition has previously been impossible.
- Demolition at a precise point
- Remote control construction
- Multiple functions in one
- MIni bady - gets through the narrowest doorways
Features
- Hydraulic hammer model
- Optional model
Performance
- Slewing speed
- 8.0 r/min
- Transport speed, max.
- 3.5 km/h
- Climbing inclination, max.
- 30 °
Hydraulic system
- Hydraulic system capacity
- 40L
- Pump type
- Variable load-sensing
- System pressure
- 16 Mpa
- Increased pressure to attachment
- 21 Mpa
- Pump flow 50Hz
- 40 L/min
Power system
- Power technology
- Electric motor
- Electric motor type
- YX3-180M-4
- Power*
- 18.5kw
- Recommended fuse size*
- Starting device
- Soft start/Direct start
Control system
- Control type
- Signal code
- Digital
- Transfer
- Portable remote control
- Range, radio
- 150m，or customized 2000m
Weight
- Machine weight**
- 1050kg
- Recommended attachment weight
Noise level
- Sound power level LWA***

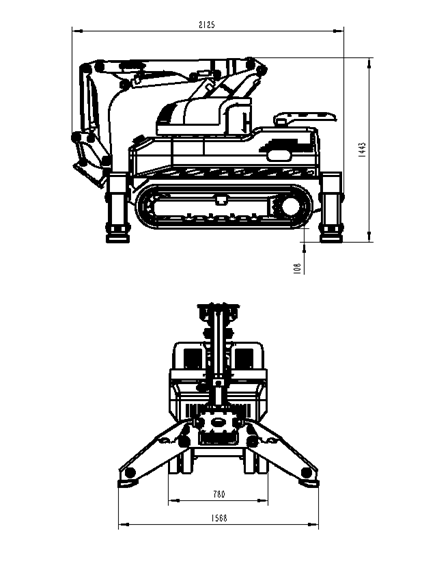

- Width min.
- 780mm
- Height min.
- 1285mm
- Vertical reach (incl. breaker)
- 3950mm
- Horizontal reach (incl. breaker)
- 3750mm
